Lexus LX470 2004 MY

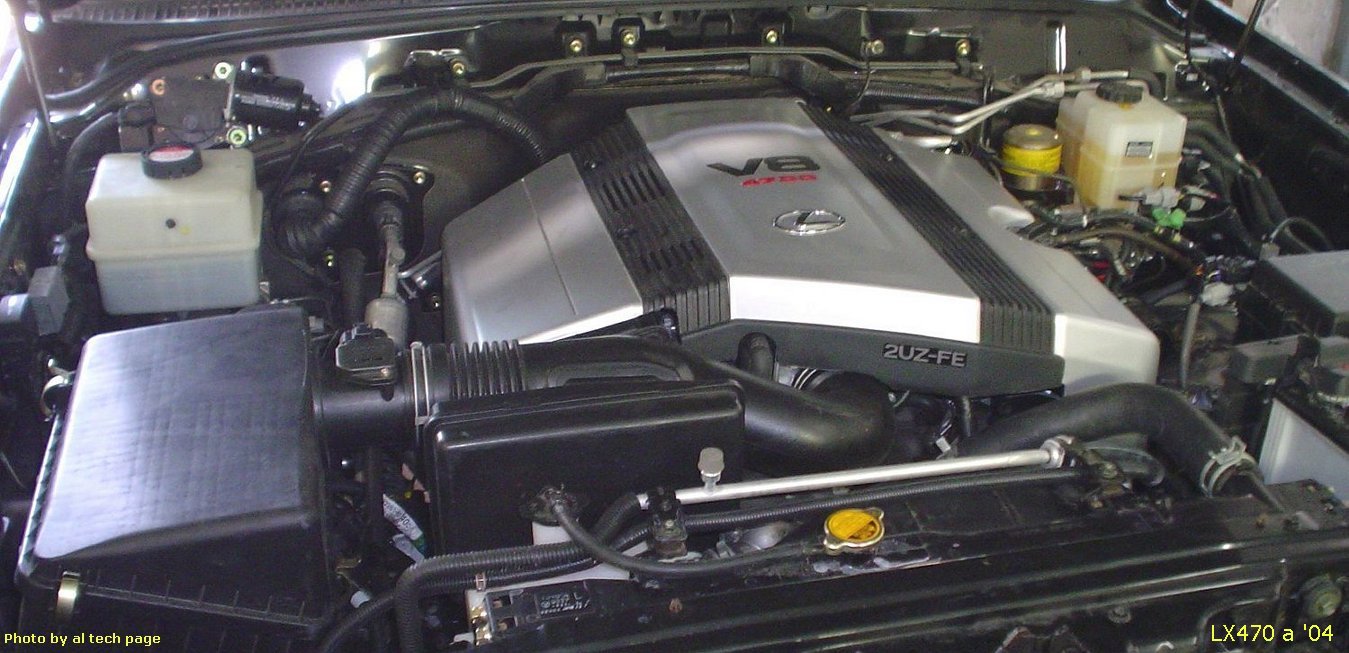

Engine:          2UZ-FE*/ 8 cyl / Gas, Fuel: Fuel Injection, Mileage: 1834 mile, Emissions: OBD-II Compliant, VIN: JTJHT00W94..., Symptoms: VGRS lamp flash
Causing:        Diagnostic and Repair

Несколько фото (take a look the Comments to photo)

Click to other photo

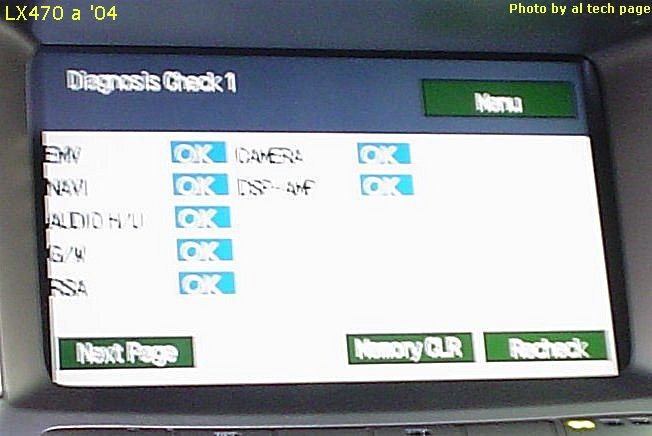

Test Results (49081 bytes)

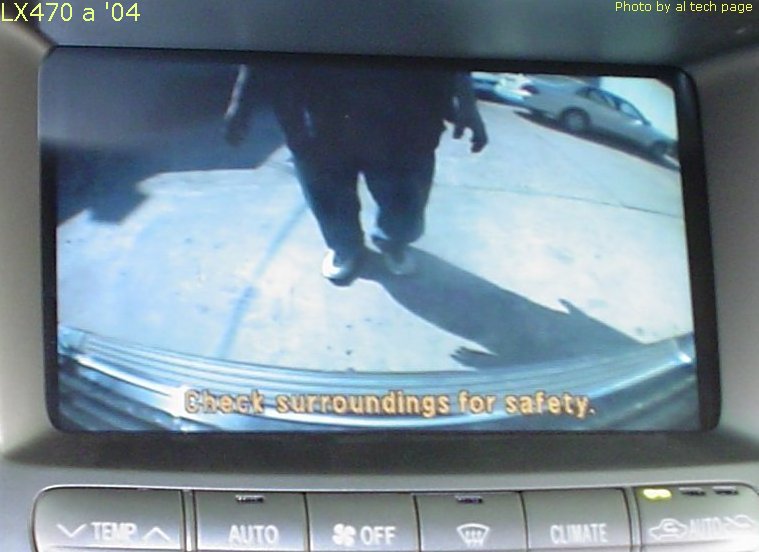

Изображение с широкоугольной камеры заднего вида включается автоматически при переводе рычага выбора режимов коробки в положение "R"

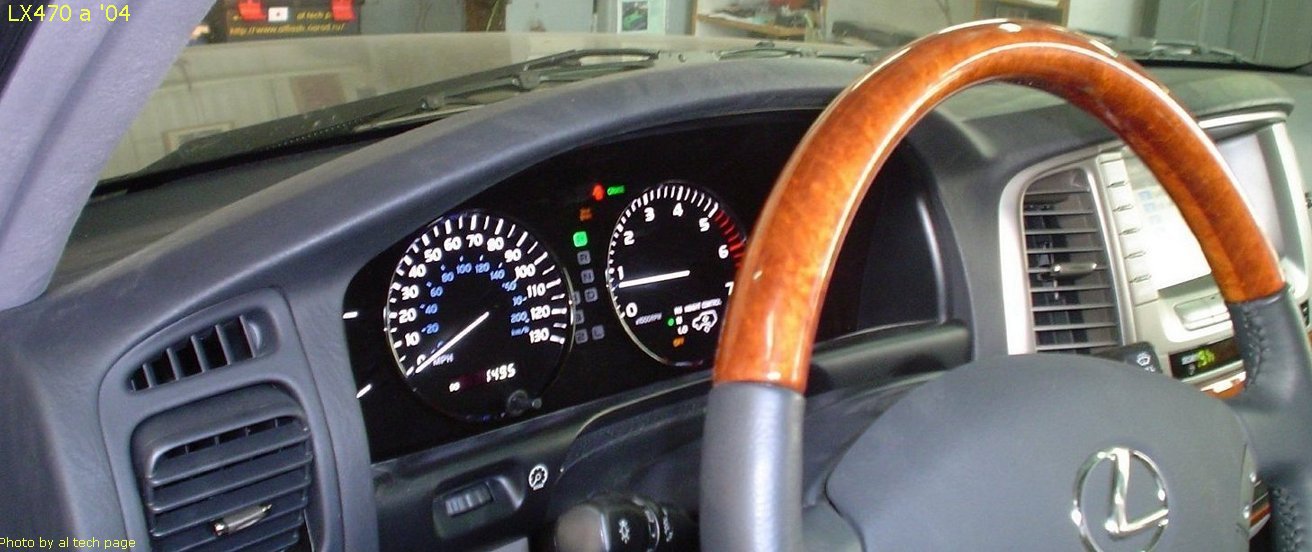

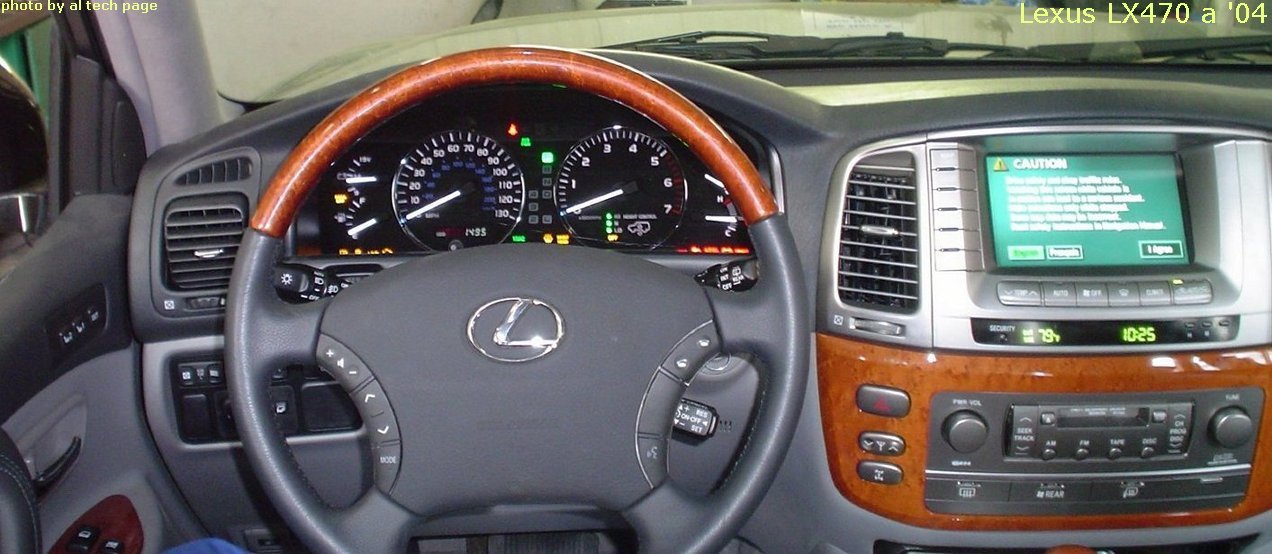

  Безусловно, основная диагностика проведена с помощью соответствующих "программно-аппаратных "средств. Но и старые методы (without Scan Tools) тоже имеют свои возможности. На телевизионном мониторе авто показывает результаты самодиагностики некоторых электронных систем. "Моргания" соответствующих ламп индицирует коды самодиагностики (при наличии неисправности).

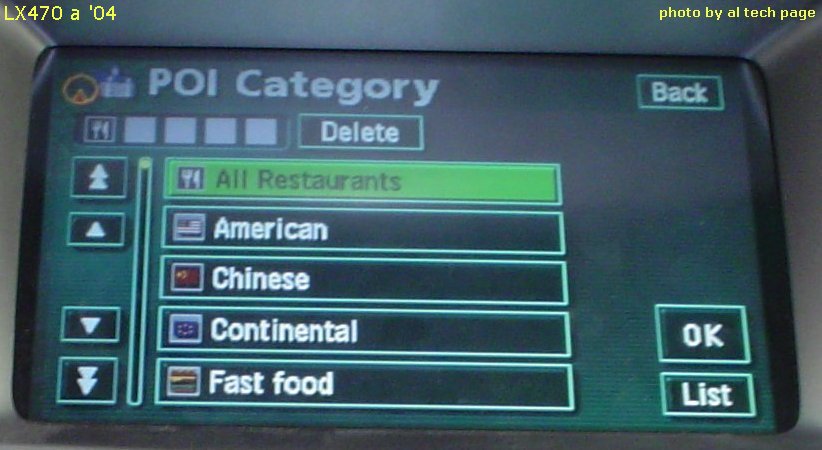

Restaurants Menu :-) (66662 bytes)

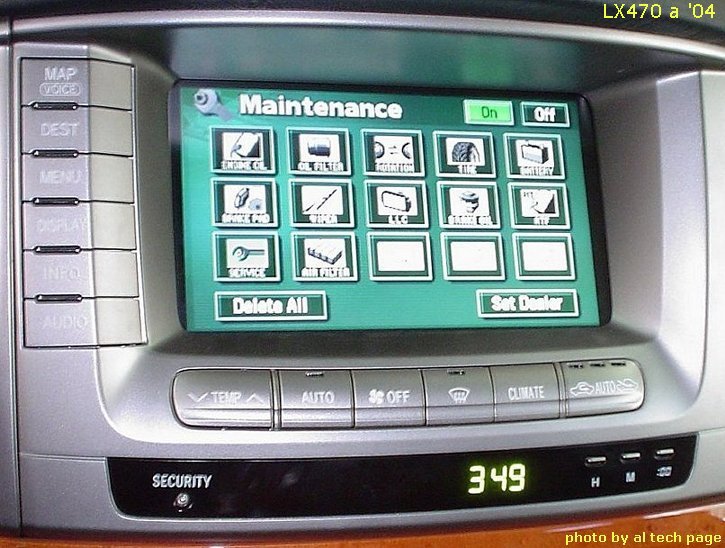

Maintenance Menu (103895 bytes)

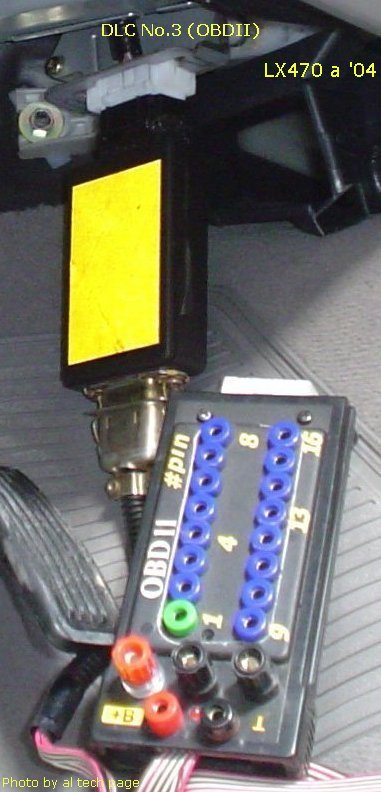

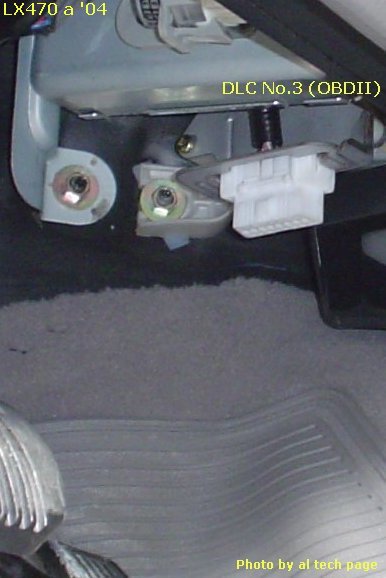

Diagnostic connector (OBDII) on LX470

"device" for read codes without Scan Tools

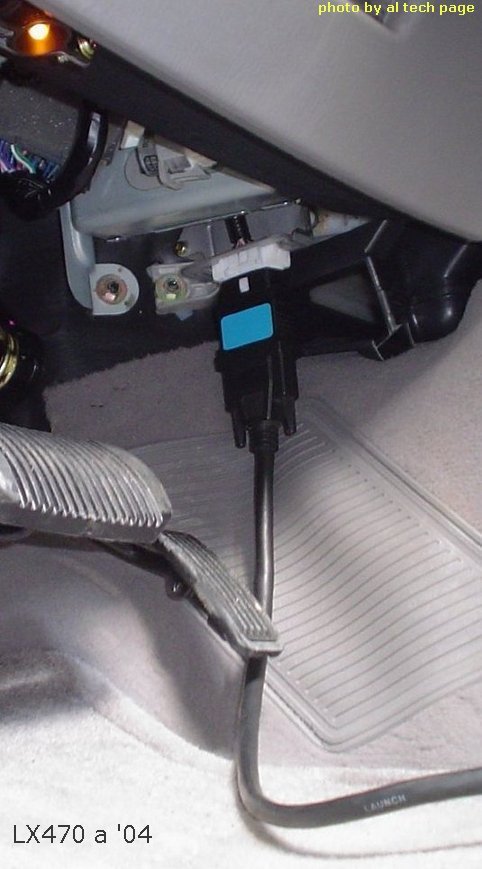

connect the Diagnostic Computer to DLC No.3



Использование технологии Bluetooth позволяет использовать мобильный телефон, не доставая его из кармана, вызывать голосом абонента или набирать номер на экране Touch-Screen. Клавиши активации голосового управления (до 300 команд) расположены на руле

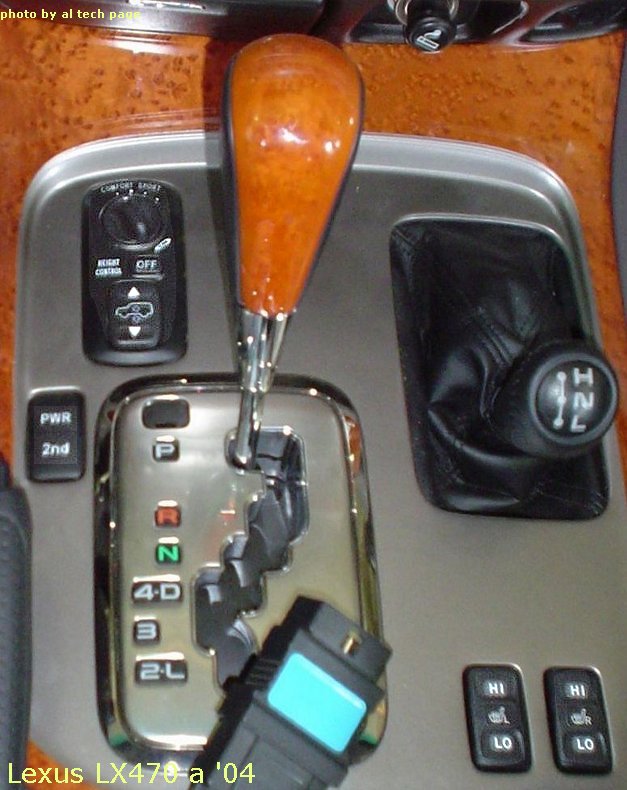

Автомобиль оснащен системами изменения жесткости подвески (4 режима) и регулировки высоты

Trip Computer (93601 bytes)

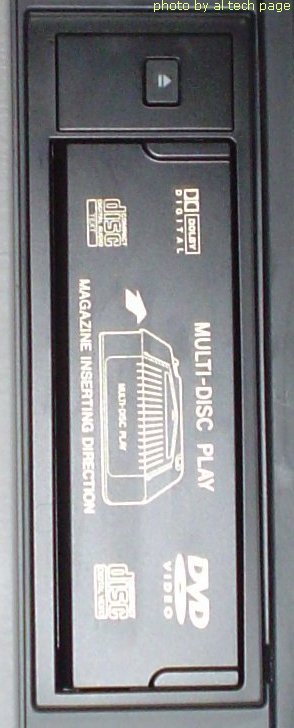

DVD / Video (44469 bytes)

Считаны коды самодиагностики системы AHC – Active Height Control Suspension:

  • C1783 Door Courtesy Switch Circuit Malfunction

  • C1787 EMS Switch Circuit Malfunction

  • C1788 Height Control OFF Switch Circuit Malfunction

Vehicle is equiped RSCA Off Switch. But not use KDSS System...

*MSRP starting at $US 65,100

Lexus Night View - $2,200
Lexus DVD Rear-Seat Entertainment System (RSES) - $2,469
Roof rack with accessory CrossBars - $220
Rear spoiler - $280

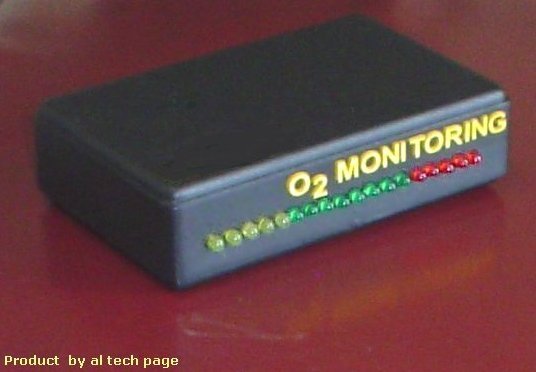

Checker Air/Fuel Ratio   Для любителей "контролировать" состав топливно-воздушной смеси "в настоящий момент" может пригодится это простое приспособление ;-). Два десятка светодиодов, один корпус преобразователя (LM3914N), немного свободного времени и он ваш ;-).

Более подробное описание этого "девайса" смотрите здесь.

  Напомню, что т.н. кислородный датчик определяет состав смеси по составу выхлопных газов.  ЕСМ использует его данные для управления "подачей" бензина. Но большинство современных Toyota use Wide Range Air / Fuel Ratio Sensors...



Service Bulletins for 2003 Lexus Truck LX 470 V8-4670cc 4.7L DOHC MFI
TSB Number / TSB Title

EL009-03 Lexus Link System (R) - Error Detected
PG004-03 Wheels/Tires - Spare Tire Carrier Operation
ST001-03 Steering - Variable Gear Ratio Steering Calibration
EL006-03 Navigation System - Map Screen is Blank
AX003-03 Cellular Phone - Hands-Free Mode Buzzing Noise
TC002-03 Engine Controls - ECM Reset Memory Function
EL003-03 Lighting - DRL Stay ON When Towing a Trailer
EL002-03 Instruments - Service Maintenance Lamp Resetting
TC001-03 A/T - A750 Solenoid Identification
EG001-03 Exhaust System - Sulfur Smell
SS005R-01 Diagnostic Tester - Immobilizer Function
PG011-02 Steering - VGRS System Initialization

PG016-02 Moon Roof Initialization

Прим. перечни TSB публикуются для того, чтобы пользователи, не отягощенные наличием соответствующих информационных материалов (Sevice Manual, etc), могли ознакомится со способами решения части возникающих проблем своих автомобилей.

* Performance
- 4.7-liter, four-cam, 32-valve 90deg. V8 engine. Certified Low-Emission Vehicle (LEV)
- 235 hp @ 4,800 rpm, 320 lb-ft torque @ 3,400 rpm
- Electronic Throttle Control System with intelligence
- Full-time four-wheel drive with locking center differential and standard four-wheel Traction Control (TRAC)
- 0 to 60 in 9.7 seconds
...



Luxury.
- Bird's-eye maple and leather interior trim
- Bird's-eye maple- and leather-trimmed steering wheel and shift knob
- Interior lounge illumination
- Remote control for windows and moonroof
- Available roof rack with accessory CrossBars
- Available rear spoiler
- Auto door lock/unlock
- Steering-wheel audio controls
- Trip computer
- Customized Body Electronics System (C-BEST)
- Lexus Rear-Seat Audio System (RSAS)
- Available Lexus DVD Rear-Seat Entertainment System (RSES)
- Lexus AM/FM/cassette/CD seven-speaker 124-watt  Premium Sound System with Automatic Sound Levelizer (ASL) and six-disc CD auto-changer
- Automatic front/rear climate control with interior air filter, smog sensor and automatic recirculation mode
- Power windows with one-touch auto open/close
- Power rear quarter windows
- Lexus DVD Navigation System  with backup camera
- Available Mark Levinson® 240-watt Premium Audio System with Automatic Sound Levelizer (ASL) and six-disc CD auto-changer
- Rear privacy glass
- Cruise control
- Power tilt-and-telescopic steering column with automatic tilt-away
- Lexus Memory System to control power driver's seat (except lumbar), outside mirrors and steering wheel
- Multi-adjustable power front seats with driver's-side power lumbar support
- Illuminated visor vanity mirrors
- Dual sun visors with slide mechanism
- Illuminated entry system
- Power tilt-and-slide moonroof with one-touch open/close and sliding sunshade
- Retained accessory power for windows and moonroof
- Dual-compartment center console
- Reclining/folding split middle seat
- Nine cupholders
- Outside temperature gauge
- Power-folding outside mirrors
- Heated front seats
- Auto on/off projector-beam halogen headlamps
- Power mast antenna with adjustable height and FM-diversity system
- Accessory power outlets in dash, center console and rear cargo area
- HomeLink® universal transceiver to operate compatible garage, gate, home lighting and home security systems
- Folding/removable split third-row seat
- Electrochromic (auto-dimming) inside mirror and outside mirrors
- Power door locks with auto lock/unlock, anti-lockout feature and driver's two-turn unlock feature
- Multifunction, in-key remote entry system with rolling-code technology
- Remote-linked window and moonroof opening
- Running boards with built-in courtesy lights
- Available mobile phone

Warranty.
Lexus Limited Warranty: 4 years/50,000 miles
Powertrain Warranty: 6 years/70,000 miles
Corrosion Perforation Warranty: 6 years/unlimited mileage

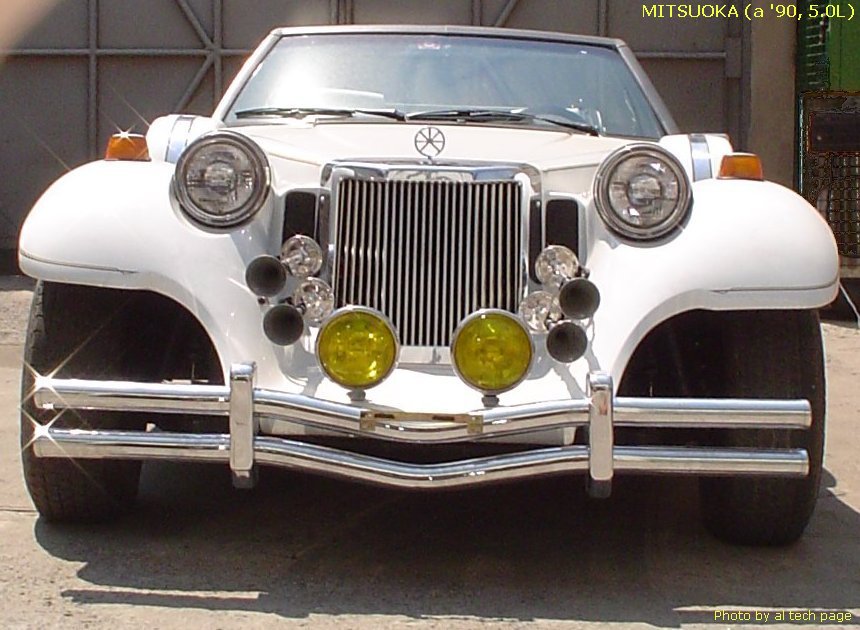

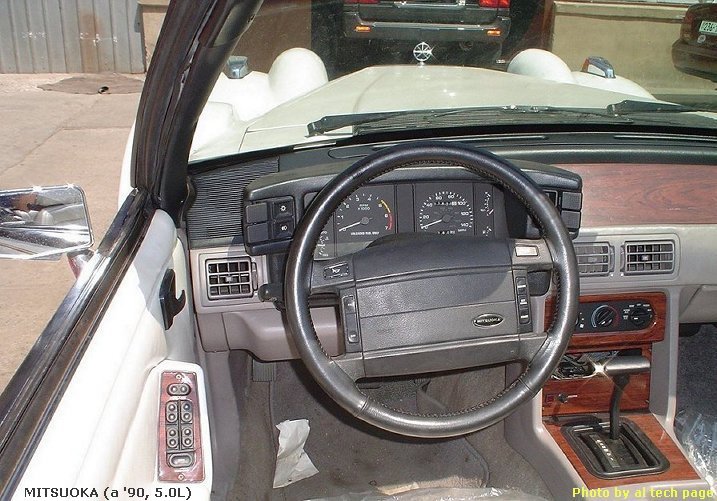

Off. Прикол японского автопрома - MITSUOKA (MFD, by FORD MOTOR Co. with 5.0 litre Engine)

MITSUOKA (110367 bytes)

MITSUOKA  (104852 bytes)

MITSUOKA (83266 bytes)

MITSUOKA (81176 bytes)

В Украине бум на ретро автомобили ...
