Mass Air Flow Sensors





Yaris * (Latin America & the Caribbeans, Europe, Middle East & South West Asia), известен также как Vitz (Kamigo Plant, Japan) и Echo (Africa, Asia, Oceania) выпускатся с 1999 года.

Комплектуется двигателем 2NZ-FE DOHC+VVT-i (NZ series, inline 4, chain, BHP:88@6000,  Torque:89@4400, CR:10.5:1, DIS.

  Известны варианты с двигателями: 1.0 VVT-i 65 hp (2001-), 1.0  (1999-2000), 1.3 16v VVT-i 87 hp (2001-), Versio 1.3 (2001-), 1.4 D-4D 75 hp,  1.5 VVT-i 105 hp (T Sport)  и др..

Например, RHD VITZ Toyota могут использоваться такие

1.3 U 1.3 BEAMS 2SZ-FE VVT-i, 2WD, CVT, 1015: 23.0-25.5km/L

1.0 F 1.0 BEAMS 1SZ-FE VVT-i, 2WD, 1015: 19.6-21.5km/L

1.3 RS 1.3 BEAMS 2NZ-FE VVT-i, 2WD, 1015: 18.0-20.5km/L

1.5 RS 1.5 BEAMS 1NZ-FE VVT-i, 2WD, 1015: 15.2-km/L

Fuel Trim DTC(s)

  DTC P0171 (MIL code 25)  System too Lean. When the air fuel ratio feedback is stable after the engine is at operating temperature and the fuel trim has reached its limit of correction to the rich side. (2 trip logic).

  DTC P0172 (MIL code 25) System too Rich. When the air fuel ratio feedback is stable after the engine is at operating temperature and the fuel trim has reached its limit of correction to the lean side. (2 trip logic).

  Feedback from the O 2 sensor influences short-term fuel trim and short-term fuel trim influences long trim fuel trim. Short-term values are temporary and not stored when the ignition key is turned off. Long-term values are stored in memory because they are part of the basic injection duration. Long term values affect injection duration in closed and open loop because they are used to calculate basic injection duration. It is important to remember that the actual fuel trim will be the opposite of the DTC. A system too lean, DTC P0171 will mean the ECM is making a + or rich correction.

  A fuel system monitor DTC does not mean the fuel system itself is at fault, but that there is a condition that is driving the fuel trim out of range. For example, excessively high fuel system pressure could cause the fuel trim to decrease beyond the parameter stored in the ECM. A misfiring cylinder may cause the fuel trim to go rich.

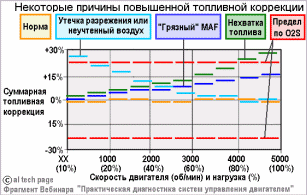

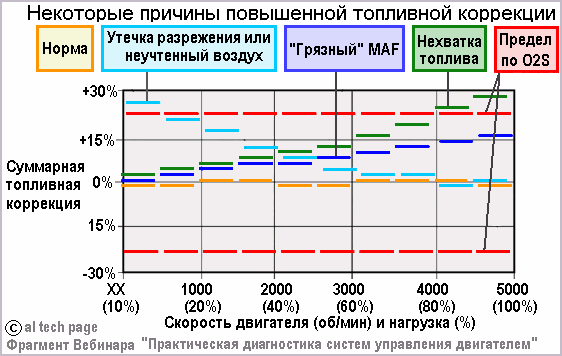

 DTC P0171 is set when fuel trim is driven rich beyond a certain value. Possible causes are:

1. Exhaust system leak.

2. Improper fuel pressure.

3. Fuel injector restricted.

4. Defective heated oxygen sensor No. 1.

5. Defective Manifold Absolute Pressure (MAP) or Mass Air Flow Meter (MAF) sensor.

6. Defective Engine Coolant Temperature (ECT) sensor.

Diagnosis & Repair

1) Inspect all air induction components and check vacuum leak. Repair as necessary. If air induction components are okay, connect scan tool. Start engine and warm to normal operating temperature. Monitor heated oxygen sensor output voltage, Long FT and Short FT at Idle and increased RPM.

2) If scan tester indicates a lean condition (.55 volt or less, +20 trim) or rich condition (.4 volt or more, -20 trim), go to next step. If results are other than shown, see DTC for Heated Oxygen Sensor Circuit.

3) Inspect fuel pressure. Repair as necessary. If fuel pressure is okay, inspect fuel injectors. Replace injectors as necessary.

4) If all injectors are okay, inspect MAF sensor or MAP and Engine Coolant Temperature (ECT) sensor and PIDs for above Sensors. Replace as necessary. If both components are okay, inspect ignition system. Repair as necessary. If ignition system is okay, replace ECM and retest.

Take a look

 Description for diagnostic and repair Vehicles with DTC P0171 with many Graphs, Screen Shots, and photos (Статья о проверке "расходомеров")

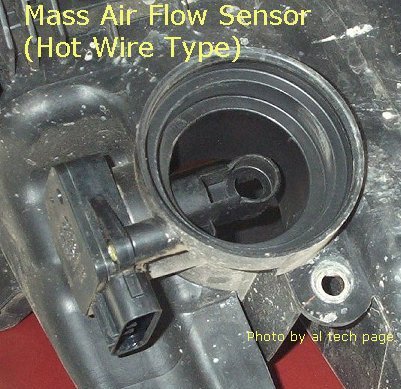

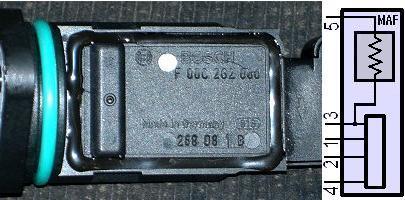

 MAFSensor (Hot Wire Type) on Toyota Engines (NZ-FE, 1MZ-FE, 1JZ-GTE,  etc.)

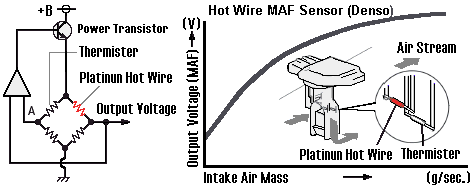

MAFSensor (Hot Wire Type)



Проверка MAF Toyota осциллографом и сканером

"Внутренности" MAF Toyota

"Внутренности" MAF Nissan



The Mass Air Flow (MAF) sensor converts the volume of air drawn into the engine into a voltage signal. The ECM uses this signal to calculate engine load. Engine load determines how much fuel to inject, when to ignite the air/fuel mixture, and when to shift the transmission.

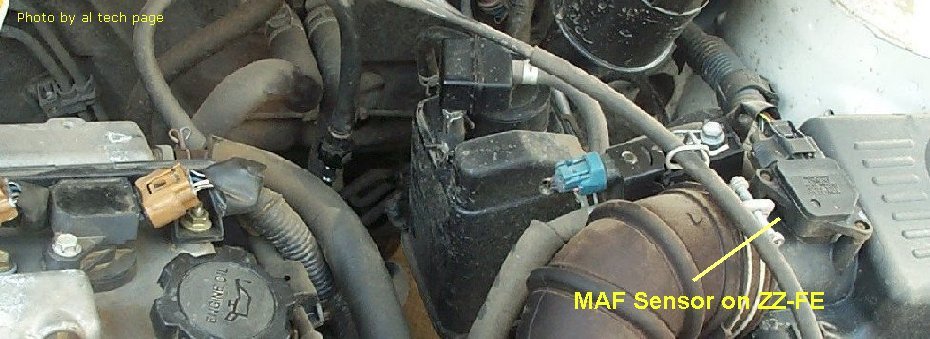

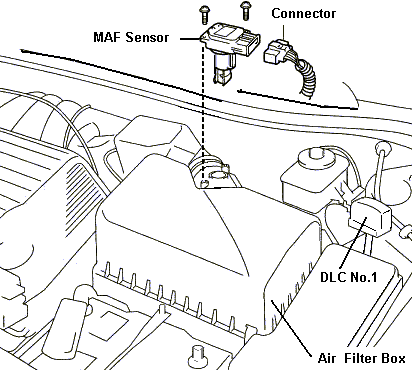

The MAF sensor is located directly in the intake air stream, between the air cleaner and throttle body.

В http://www.youtube.com/watch?v=iX2Y44Np8VM пример очистки этого датчика.



Проверка ДМРВ (MAF Checking at KOEO) Toyota (данные MAF при включенном зажигании и незаведенном двигателе aka KOEO)



maf on Excima (107181 bytes)

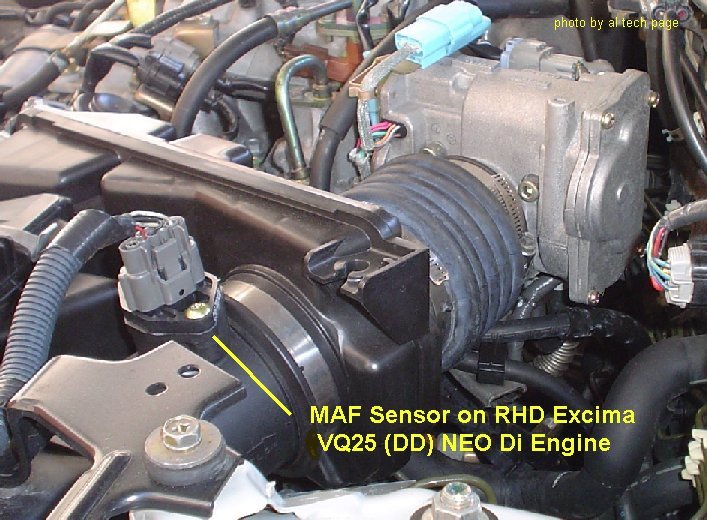

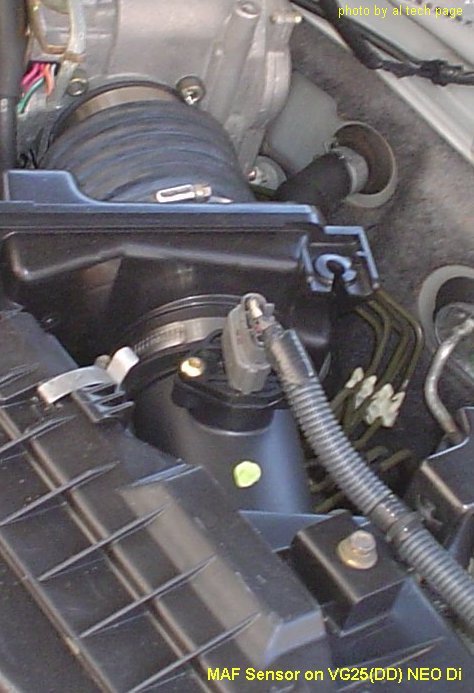

MAF Sensor on a 1999 RHD Excima g (NEO Di)

Dirty (HMF5) MAF Sensor

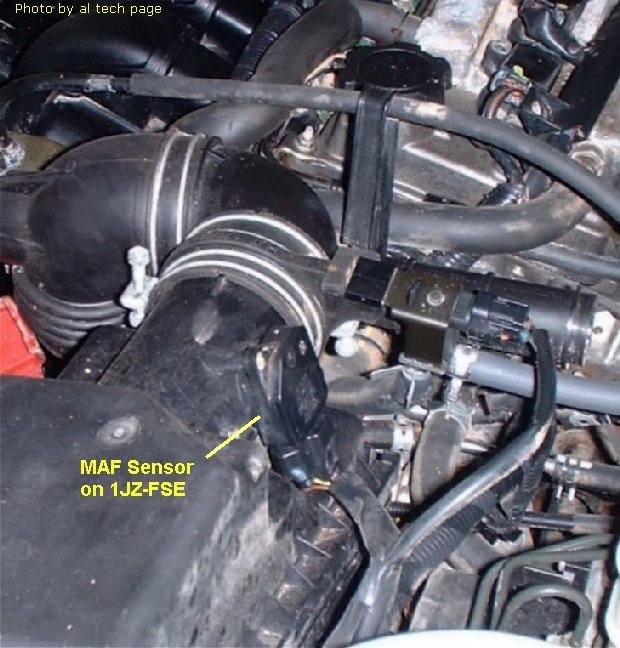

  MAf Sensor on Verossa

MAf Sensor on RHD Corolla

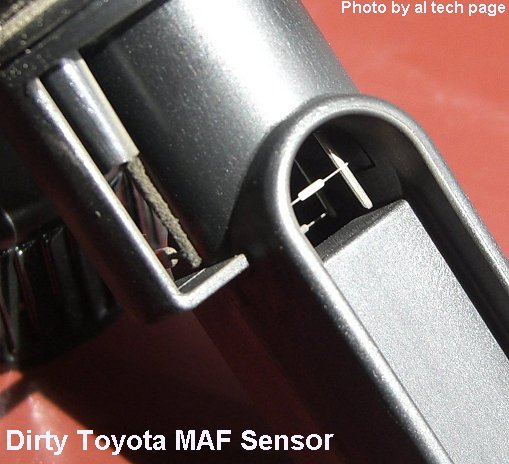

DirtyToyota MAF Sensor

MAf Sensor on RX300

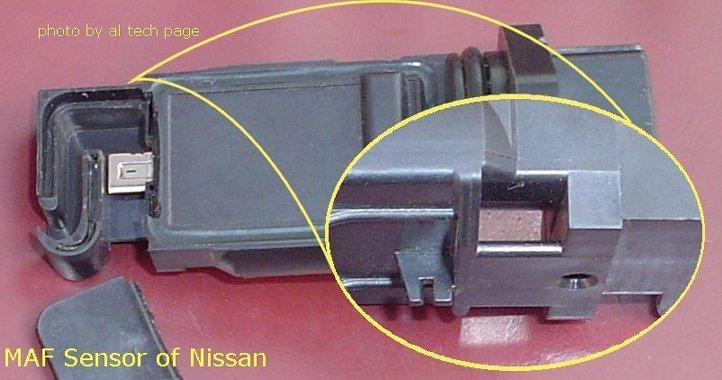

Nissan MAF sensor

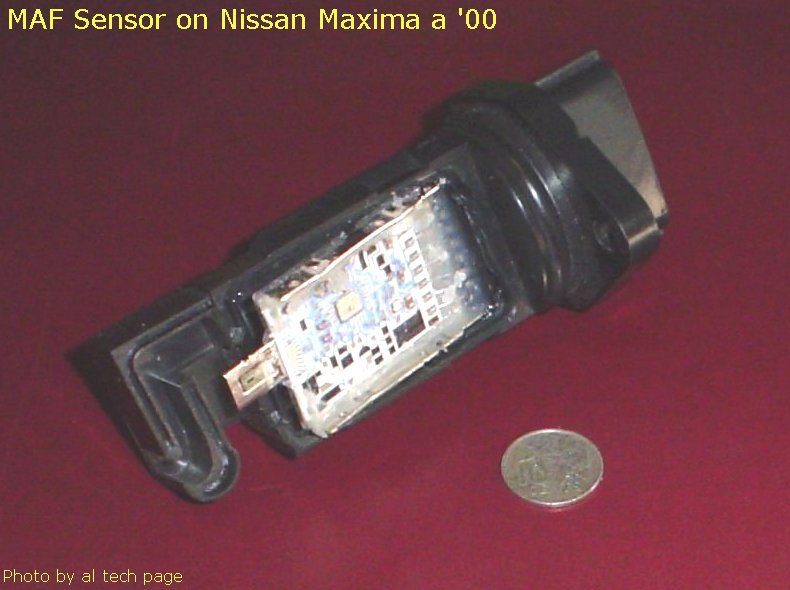

MAF Sensor Nissan Maxima

MAF Output Voltage
(Nissan)

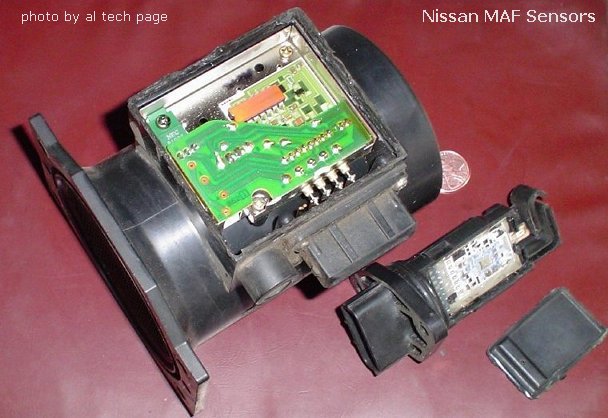

Nissan MAF Sensors   MAFSensor on RHD Gloria HY34 (VQ30DET NEO)

Примеры сбора и анализа контекстных данных смотрите в "Repair RHD Toyota Harrier", "Toyota Raum: Провал при разгоне", "2JZ-FSE D-4 топливные коррекции; черный дым"  и в других сообщениях форума по диагностике и авторемонта

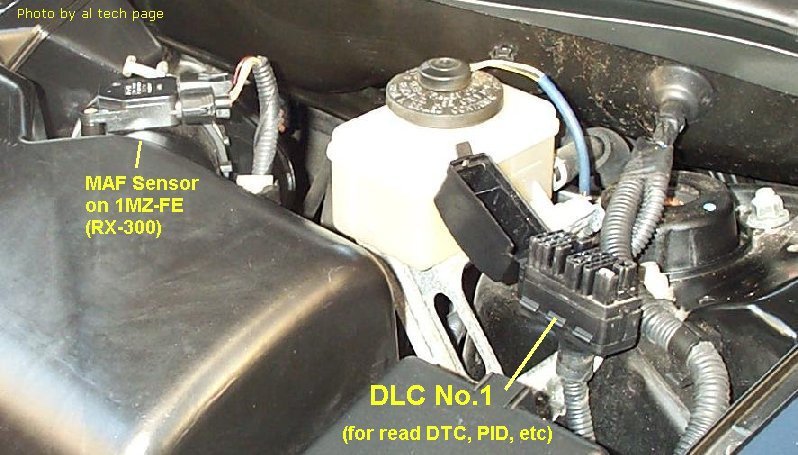

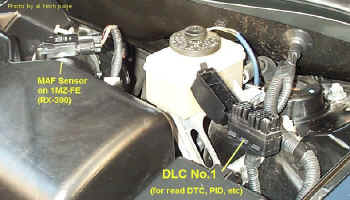

MAF Sensor on 1MZ-FE

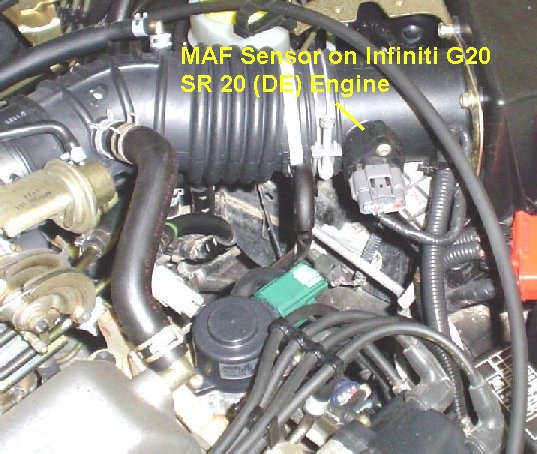

maf on SR20 (Infiniti G20 a '01) - 74919 bytes

   HMF5





Let us know PID List of ECM yours Vehicle

Throtle Body and MAF Connector

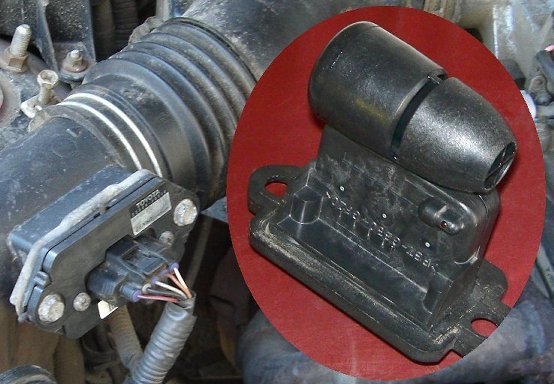

MAF located in Air Filter Cover ((on 2NZ-FE)

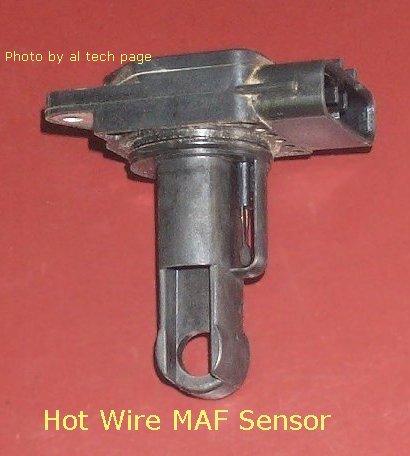

Hot Wire Maf Sensor

New Toyota MAF Sensor:

Old Toyota MAF Sensor

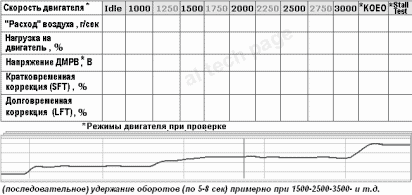

Проверка параметров при "большом расходе"

 Slowly accelerate the engine in the increments shown and record voltage,grams/sec of MAF and SFT, LFT, Injection Pulse

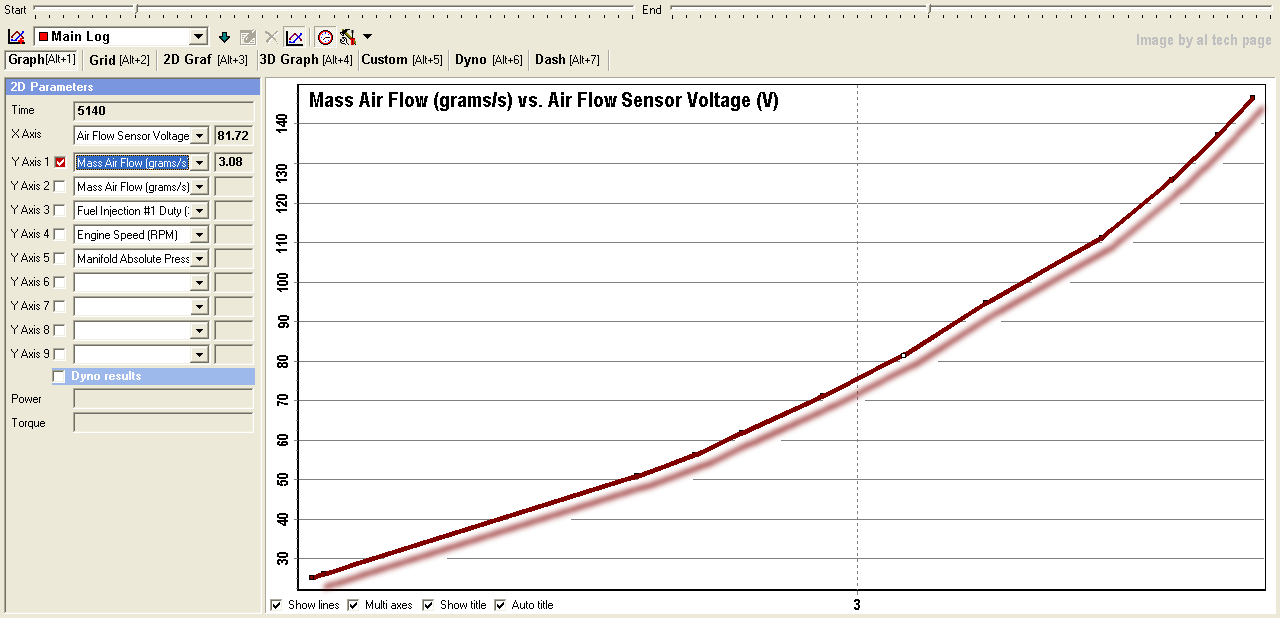

PIDs for MAF Sensor Stall Test Data Reference (1NZ-FE)     maf (volt)_vs_maf*gr/s)



RPM

Idle

1100

1400

1600

2000

2600

3000

LFT, %

Note.

AFM*

2,90

4,03

5,80

6,49

7,70

11,50

13,30

9,98...16,22

Dirty MAF Sensor (22204-46020)

AFM

3,08

4,10

6,30

7,71

8,80

12,20

14,2

4,5...12,16

After Clearing (MAF is good)

Inject.

















RX300 Series I: Cleaning MAF sensor

*Dirty MAF sensor on Crown Athlete 2.5 L 1JZ-GTE VVT-i Engine 350hp (voluntary 280hp limit) and no DTC. SYMPTOM: A slight hesitation when accelerating from a complete stop.

When the MAF gets coated with that big Crud the Check Engine light will ON witch P0171, P0172, etc. (depending on that that more dirty (the Thermistor or the Platinum Hot Wire).

Carefully clean this "device"with carburator cleaner, reset ECM and make sure (after test Drive): car is like new!

Особенности проверки MAF Sensor Toyota и Lexus.

Материалы на эту же тему в статьях о ремонте и диагностике RX300 (Harrier) , и более подробно о причинах кода неисправности DTC P0171 см. в

Напряжение MAF Sensor при резком открывании дроссельной заслонки (WOT) и фото загрязненного чувствительного элемента датчика

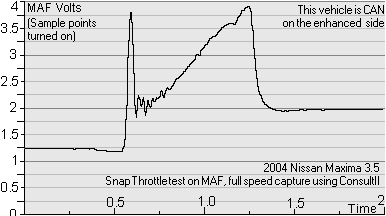

Mazda MAF Sensor Live Data at Acceleration

 RX300 a '99  MAF Output Voltage Nissan MAF Output Voltage Dirty Nissan MAF Sensor (грязный расходомер Ниссан)



* Поводом для этой странички была эта грустная история со "счастливым концом" ;-)



Начало в //wwwboards.auto.ru/toyota/426602.html

Продолжение в //wwwboards.auto.ru/toyota/430834.html

Финал в //wwwboards.auto.ru/toyota/433290.html

** Hot Wire MAF Sensor use RX300, Avalon, Camry with 1MZ-FE 3.0L Engine , etc.
