The PC-based Scan Tools is the Future for Diagnostic on the Vehicles!

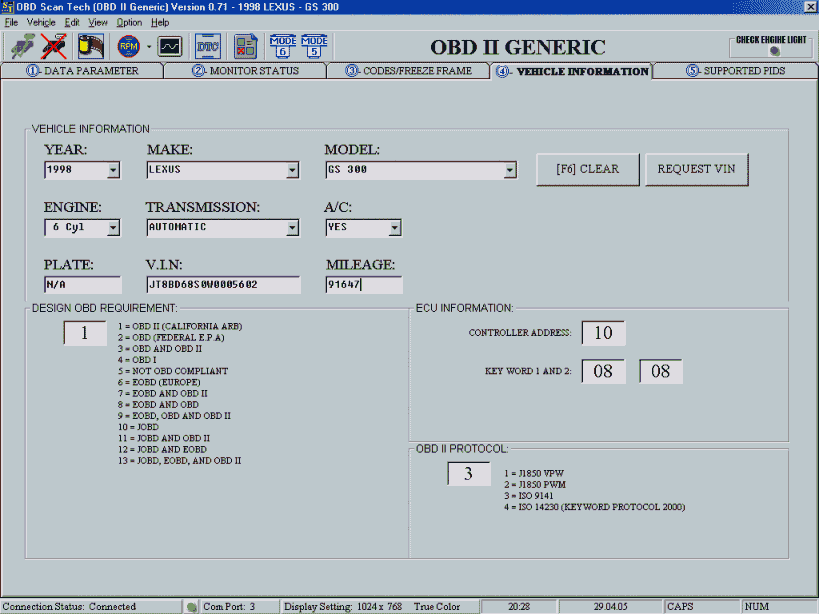

Courtesy Mr. Isaac Zia I maked Interface for Connecting to OBDII-equiped Cars, has finished assembly (soldering the elements of Jeffs Interface (BR3 INTERFACE) and checked it program on Lexus GS300 (JZS160L) a '98 (9141-2 Protocol) and on tens other Cars. Again thanks a lot to Mr. Isaac Zia for OBDII Generic Programm. All is O'k! All function and PIDs is available.
For example. I check V.76 on Toyota Camry ISO 14230(slow) and has good Results.
Screen Shots ahd photo of this and others Cars.
![1](Scantech/1_small.jpg)
![2](Scantech/2__small.gif)

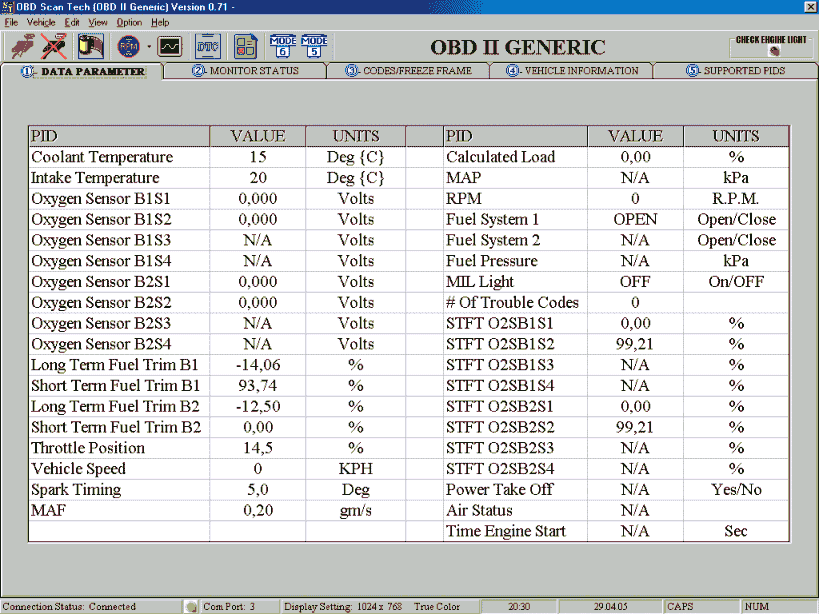

![Data Parametrs](Scantech/3__small.gif)

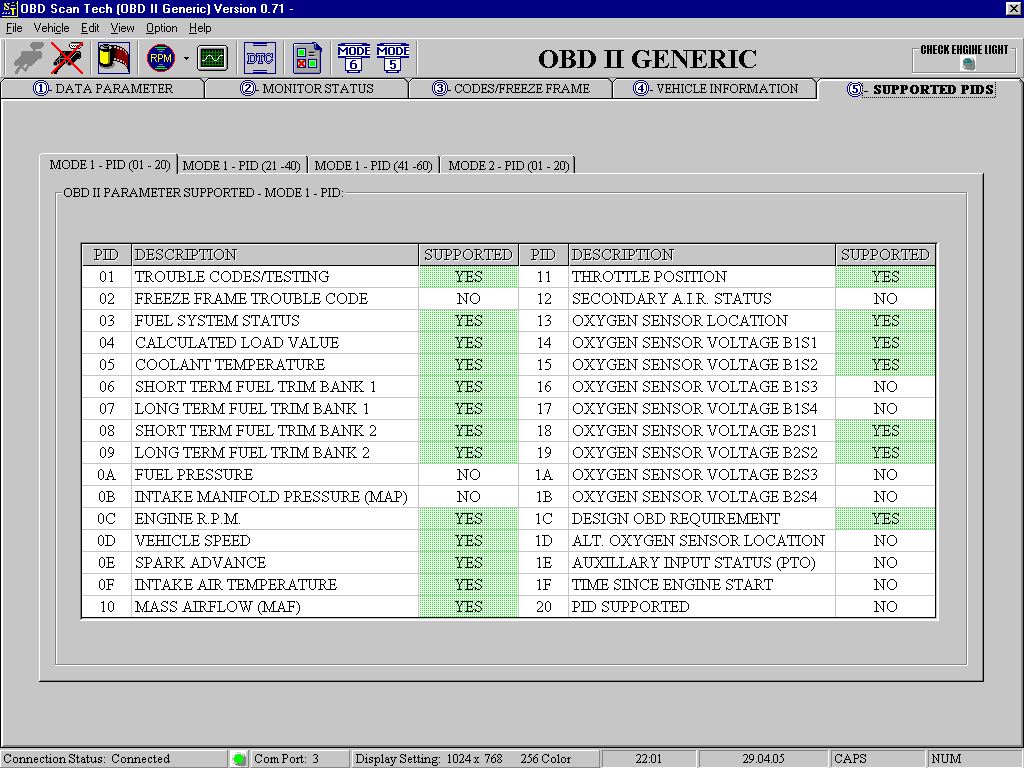

![PIDs List (fragm.)](Scantech/6__small.gif)

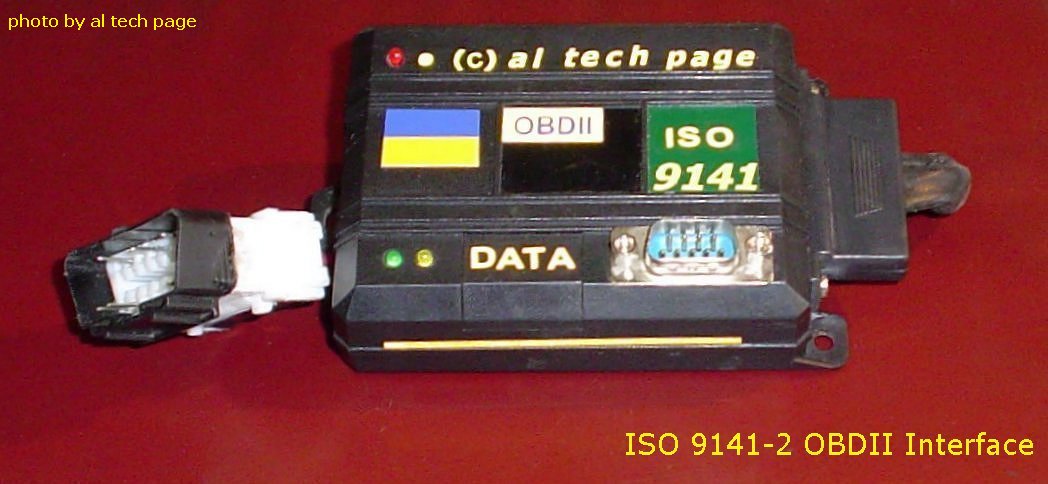

![OBDII Interface for Asian and European Vehicles](Consult/03168__small.jpg)

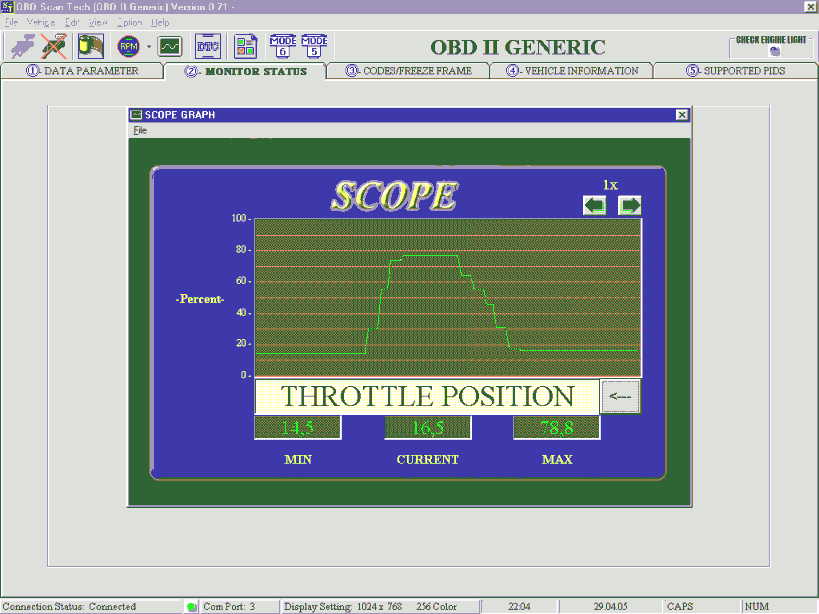

![SCOPE mode](Scantech/7__small.gif)

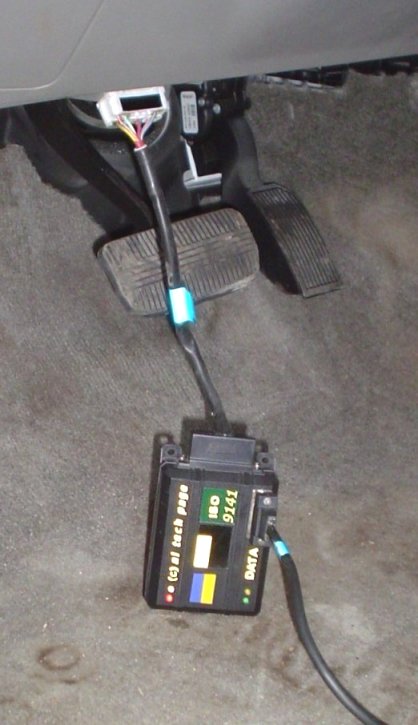

![DLC and OBDII Interface on Maxima 3.5SE a '04](DLC/03292_small.jpg)

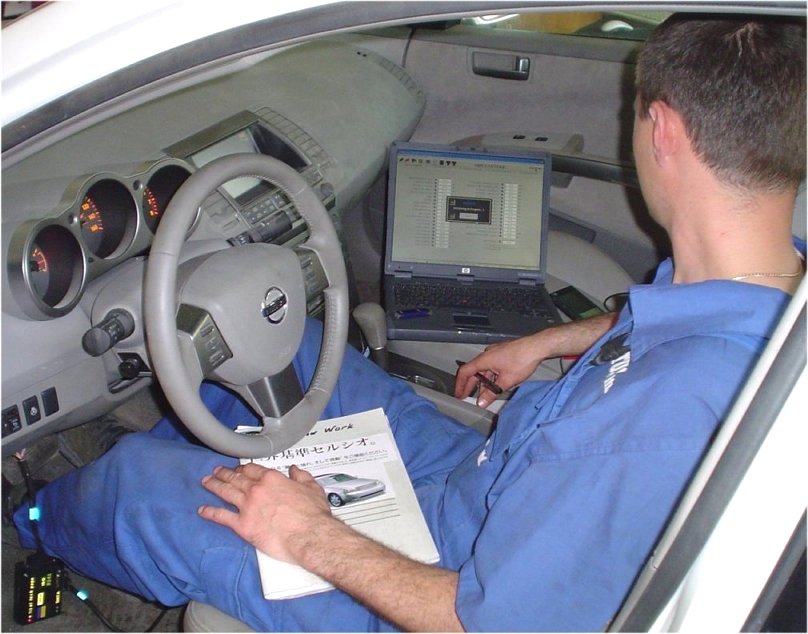

![Mr. V. Vitlicky use PC-based Scan Tool for Diagnostic Maxima 3.5 SE](DLC/03294_small.jpg)

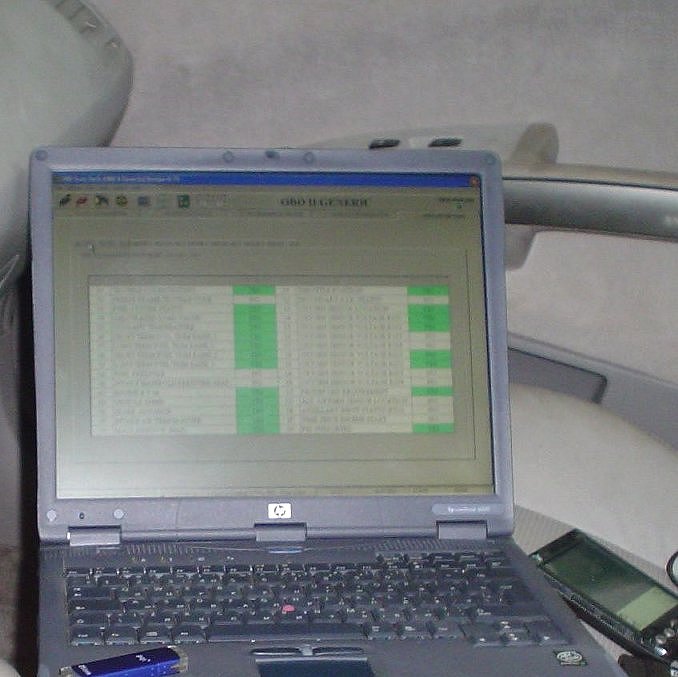

![03295](DLC/03295_small.jpg)

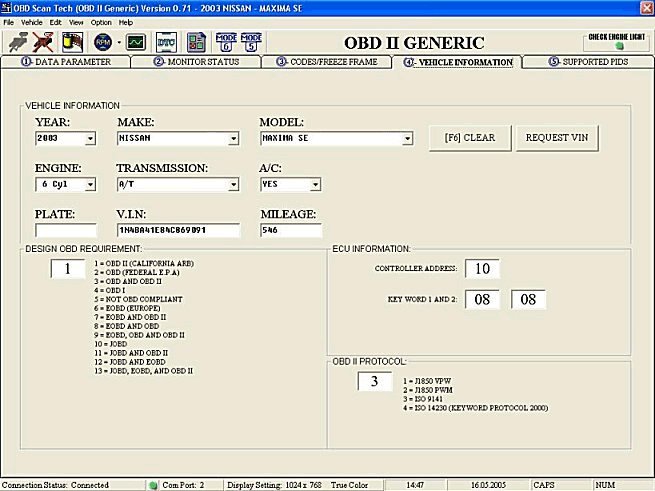

![Menu Vehicle Information](DLC/Info1_small.jpg)
I do diagnostic on Nissan Maxima 3.5 SE (VQ35 DE) a '04 (546 mil). "Service Engine Soon" Lamp (aka Check Engine Light) is ON). By using above programm read DTC P0340 [CMP (Cam Shaft Position) Sensor (Phase)].
Courtesy NTB NTB03-124 I know: Nissan had Problems with its Sensors.
By NTB NTB04-063 I know: need replacement it Sensor.
After sensor replaced - Car is like new :-). Take a look little Video on it Maxima (I'm sorry, but I don't rotation).
These Data MPG MODE ware got courtesy by Program from Mr. Isaac Zia (V0.73). I make sure that is GOOD WORK!

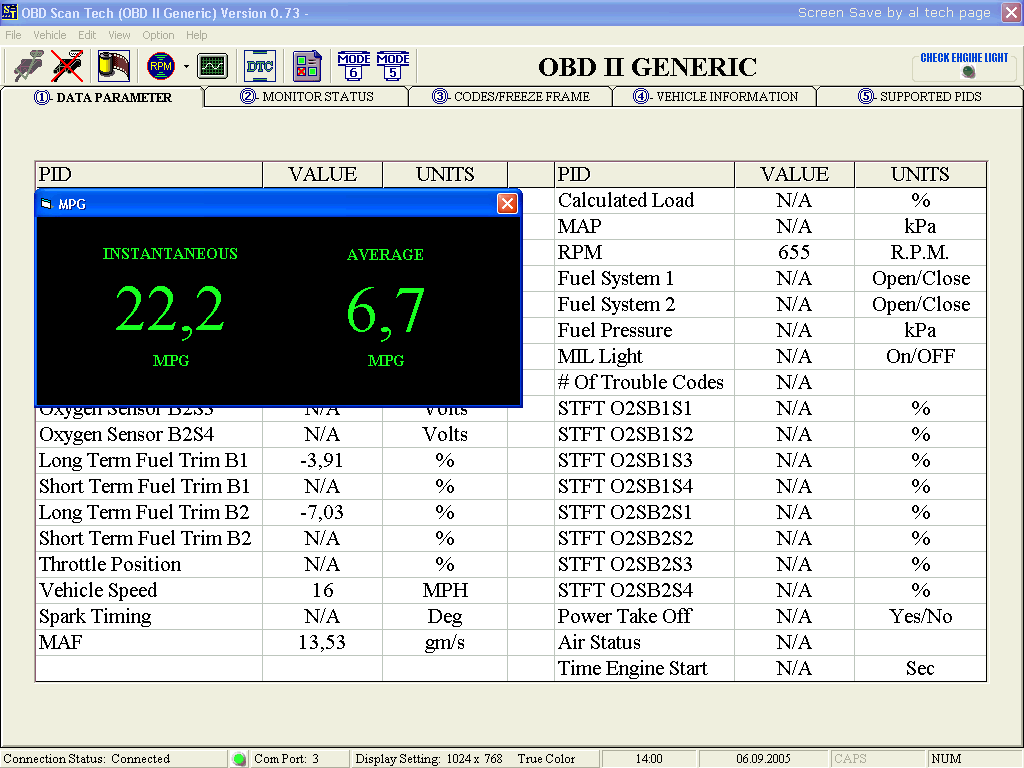

![Instant (instantaneous) and average Consumption on RHD Toyota Harrier (aka RX300 in USA)](Photo/Harrier_small.gif)

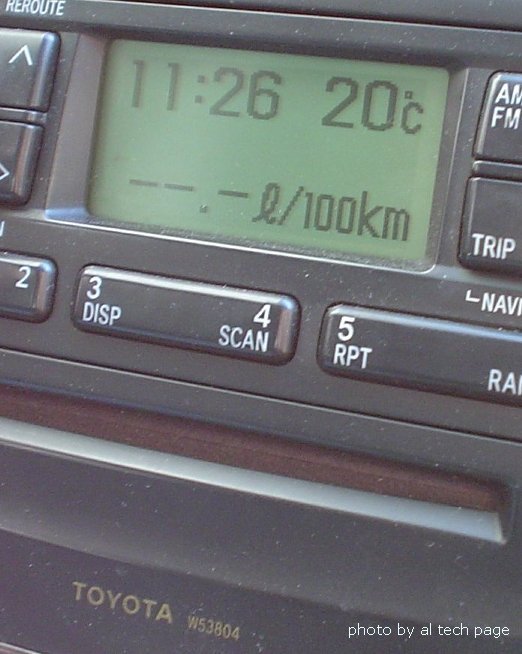

![The Trip-Computer on LHD Corolla](PC/03930_small.jpg)

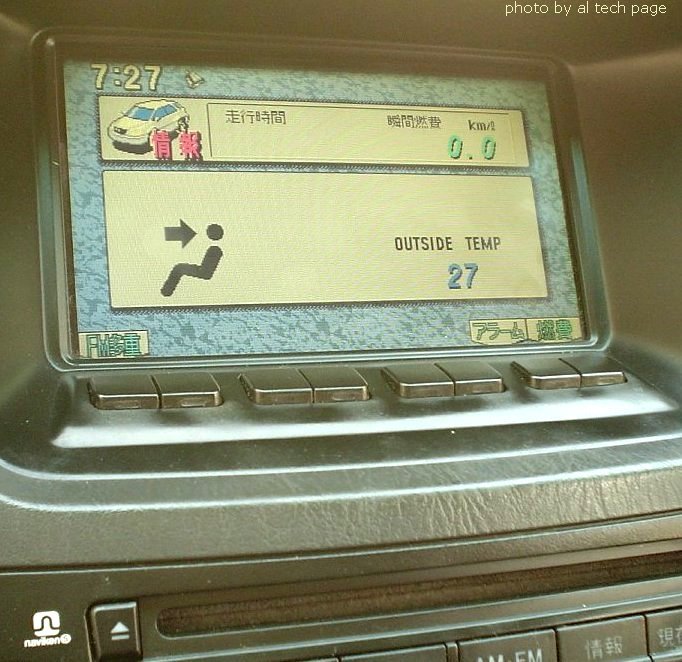

![Screen of Average (up-date every 10 sec) fuel Consumption on RHD Toyota Harrier](Photo/03927_small.jpg)

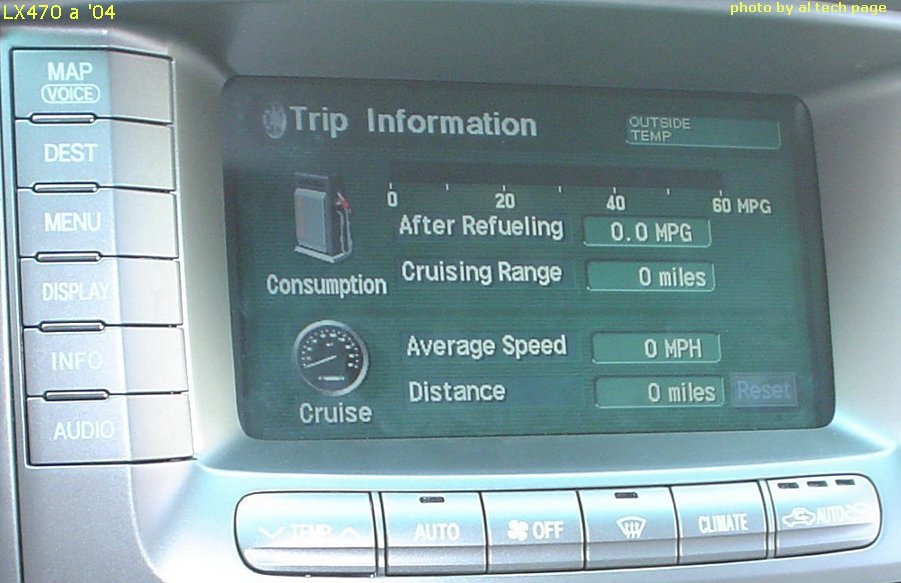

![Screen of Average fuel Consumption on Lexus](LX/01265_small.jpg)

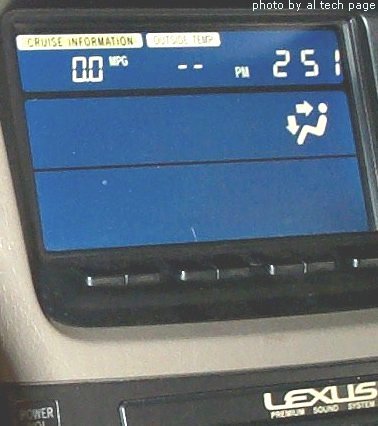

![Screen of Average fuel Consumption on Lexus RX300](PC/4504_small.jpg)

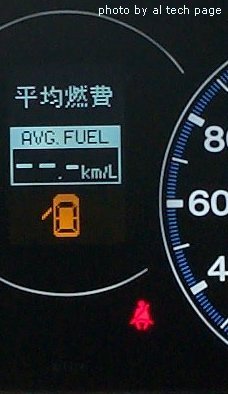

![Trip-Computer on RHD Honda Inspire (UC1-)](PC/4532_small.jpg)

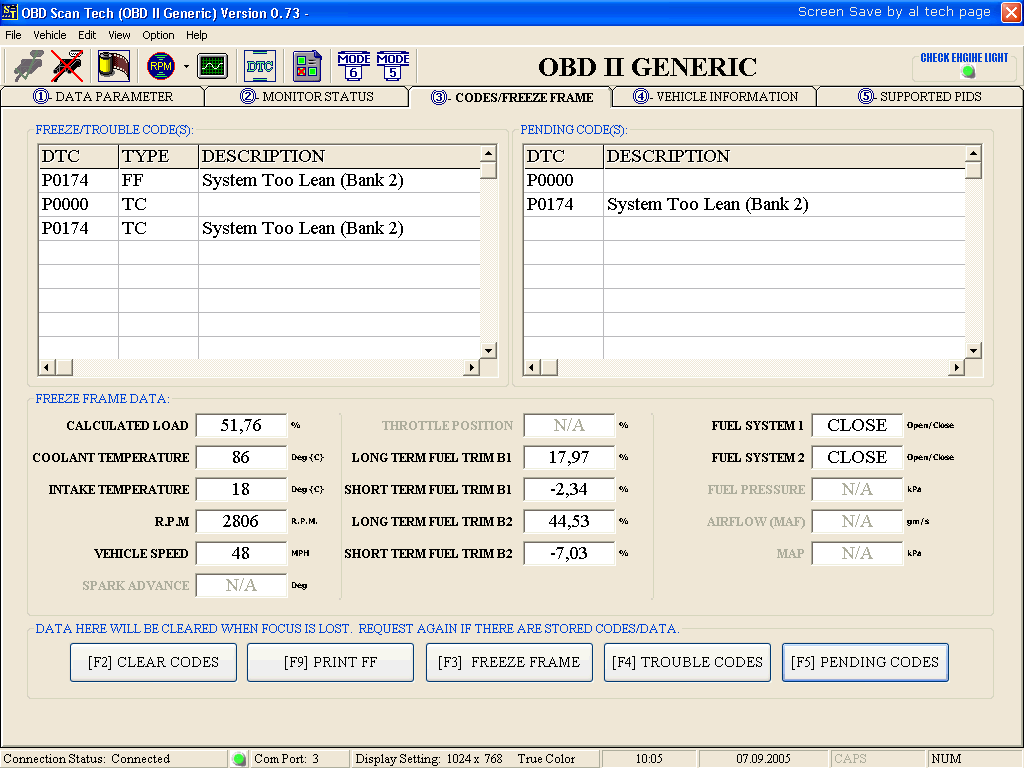

On Toyota Avensis (ZZT22L-) by using Version 0.73 I had Diagnostic and Repair DTC P0174.
Take a look LFT B2 in Freeze Frame and The Results on other Vehicle:

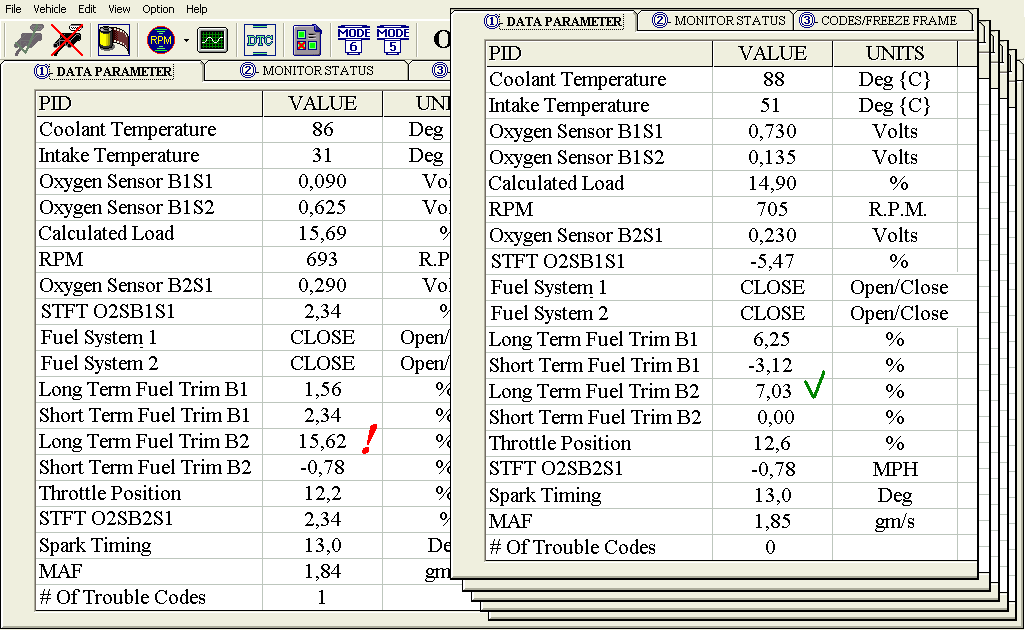

![The Data Stream at Idle (before and after clearing dirty Injectors with Wynn's)](PC/time4_small.gif)
![Version 0.74 on RX300](PC/4509_small_small.jpg)

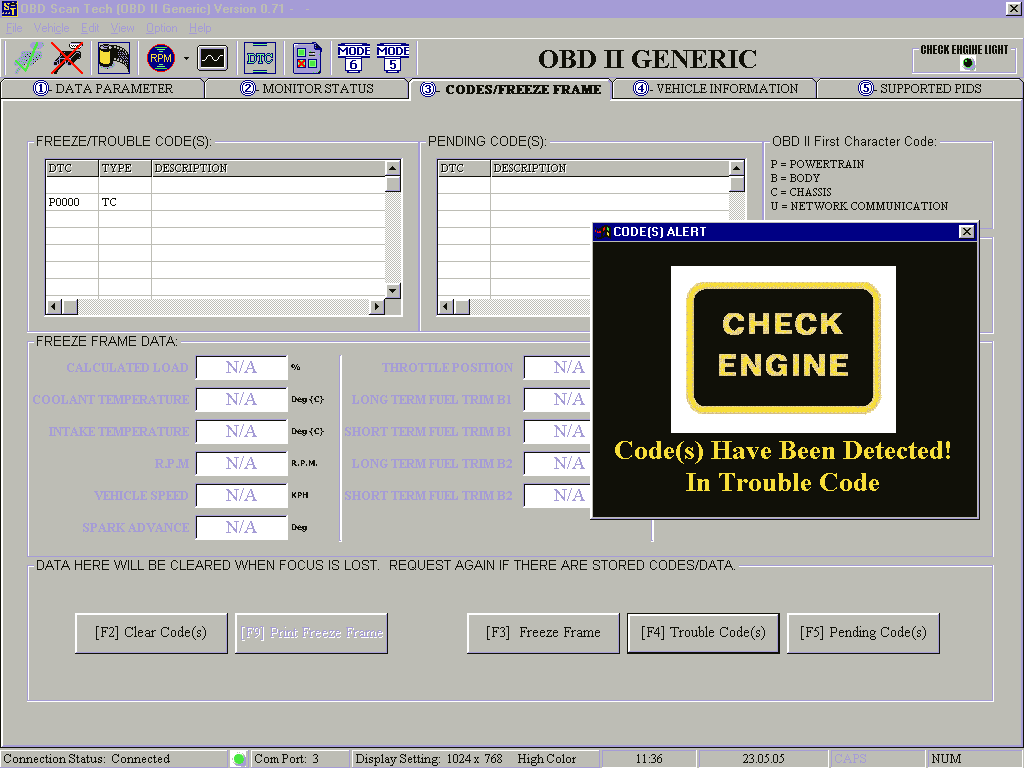

![SBscantech](PC/SBscantech_small.gif)

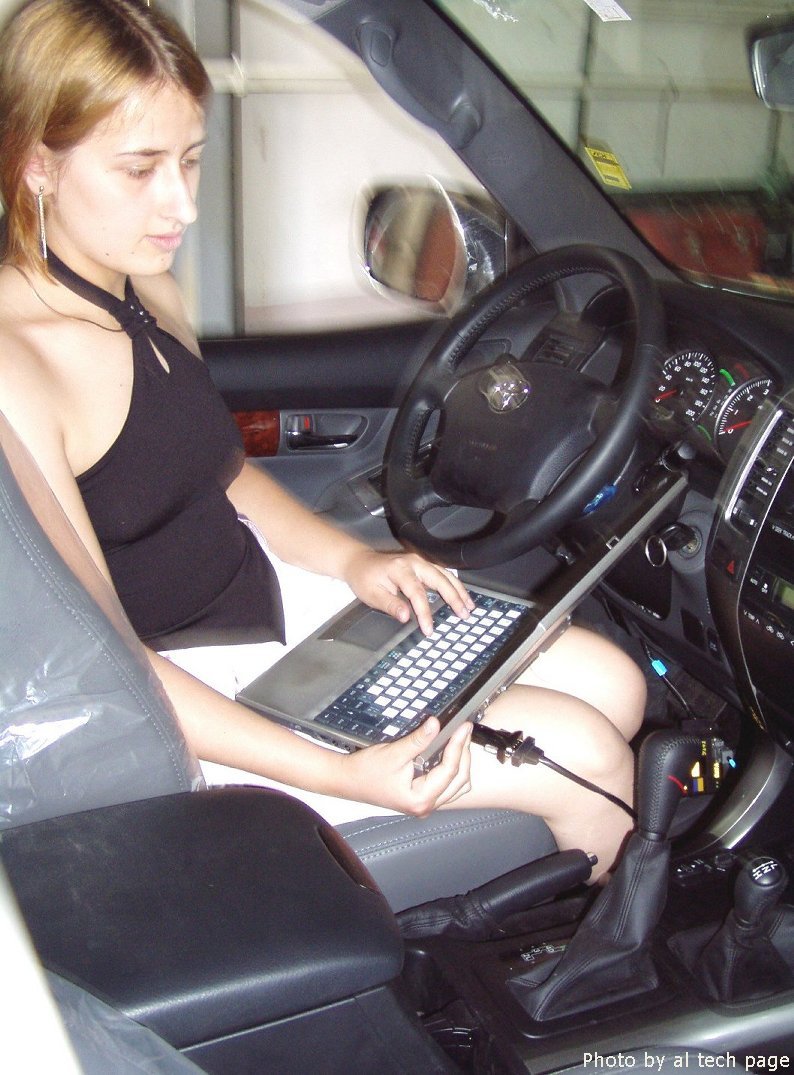

![With above Scan Toll Ms. I. Vlasenko can do Diagnostic on Toyota LandCruiser (GRJ120, 34 mile) a '05](LX/2110005_small.jpg)
![V 0.75 in Work](PCae/4773_1_small.jpg)
![# Mode 5 (O2 Test Results)](PCae/O2__small.gif)
RHD (!) Honda Saber (UA4-) a '01 |
J25A |
P0000 |
|
Lexus RX330 (MCU38L) a '05 |
3MZ-FE |
9 (!) mile |
P0000 |
Skoda Super B a '02 |
2.5l |
19 170 km |
P1423, P1411, P1609 |
Skoda Super B a '03 |
2.8 30 Valve |
34 900 km |
P0000 |
Skoda Fabia a'02 |
1.4l 16V |
? |
P0571, P1541 |
Toyota ECHO |
1NZ-FE |
65 644 km |
P0300, P0302 |
Toyota 4 Runner SR5 4WD (VZN185L) |
5VZ-FE |
60 187 mile |
P0171 |
Lexus RX300 a '99-00 |
1MZ-FE |
113 664 mile |
P0171 |
Land Cruiser KDJ120L |
D-4D (diesel) |
28 (!) km |
P0000 |
Lexus RX300 a '05 (MCU35) |
1MZ-FE |
1 068 km |
P0456 (Pending P0430) |
Honda Fit a '02 CD1 |
i-EDI |
23 220 km |
P0000 |
RHD (!) MMC Airtrek Turbo (CU2W) a '04 |
4G63T |
54 000 km |
P0105 |
LHD Corolla (Europe) a '00 |
4ZZ-FE |
53 306 km |
P0171 |
RHD (!) Toyota Harrier a '99 |
1MZ-FE |
107 443 km |
P0171 |
RHD (!) MMC Cedia (CS5w-) a '01(phot) |
4G-93 GDI |
87 100 km |
P0190 |
Nissan Armada (T60) a '04 |
VK56DE |
77 kmile |
P1564 (and C1140) |
Infiniti J30 a'01 | VQ30 DE | 52 559 mile | P0420, P0135 |
LHD Camry MCV20 (ISO 14230, slow) | 1MZ-FE | 98 200 km | P0000 |

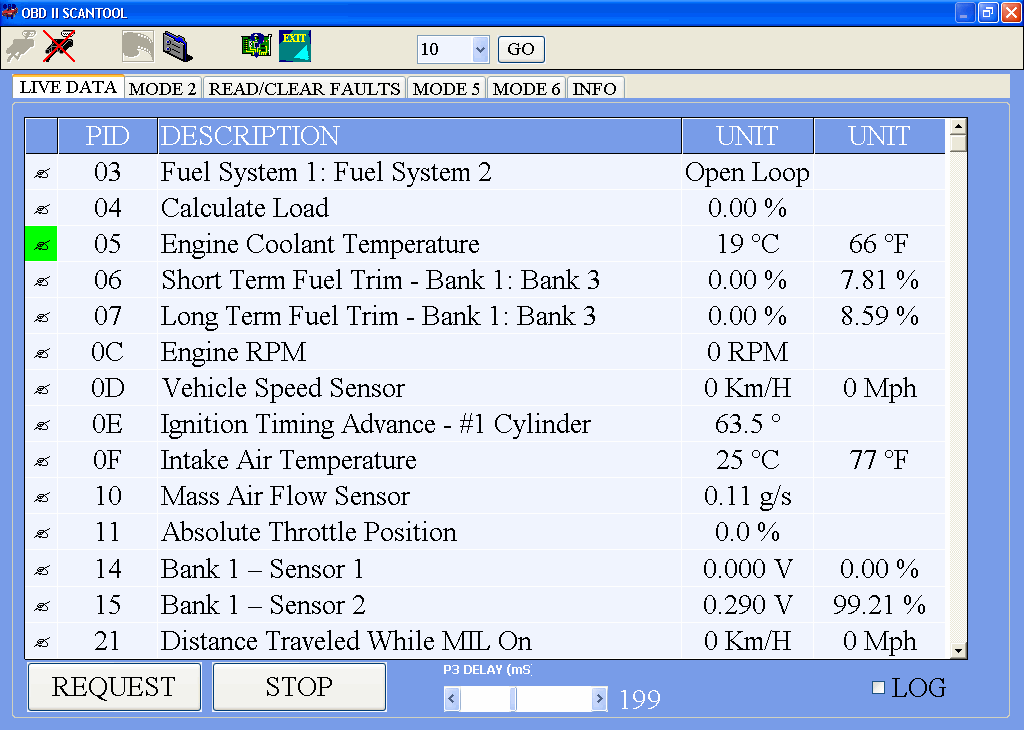

![](ease/di_small.gif)
![](ease/di_small.gif)
Was available OBD SCAN TECH 1.16 "OBD II" (OBD II GENERIC AND NISSAN C2 POWERTRAIN/AUTO TRANS)
